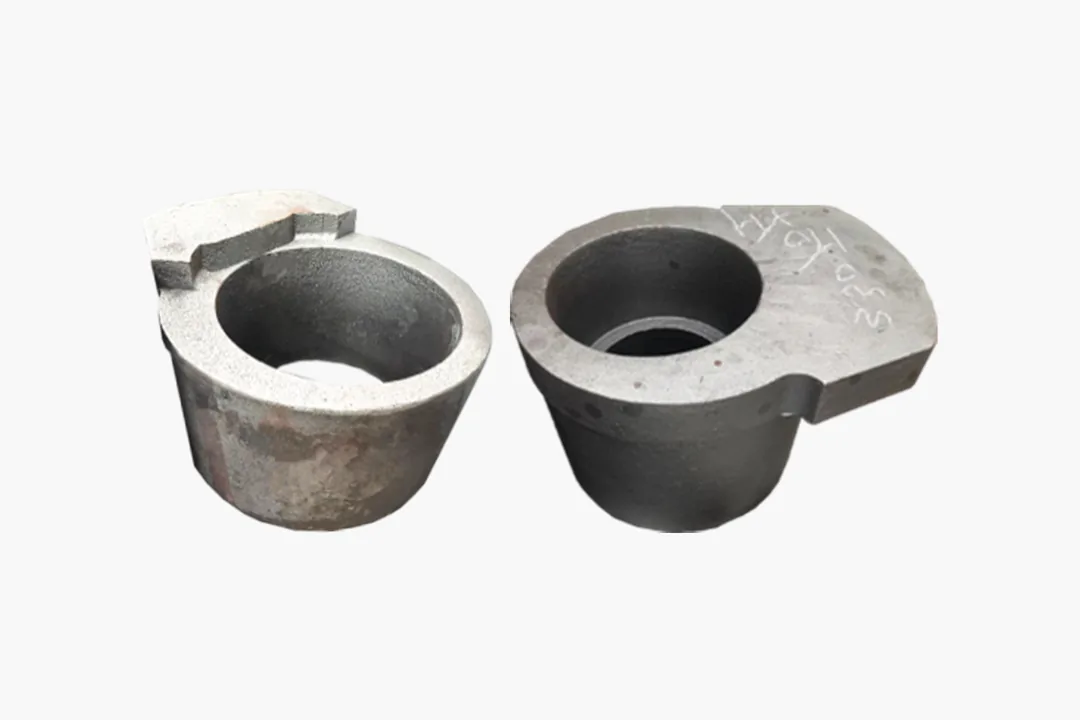

ZG35CrMo
HB 180–240 · AKV(−30°C) ≥50 J
Metallurgy
Dimensional precision for rolling, casting, and sintering systems.
Castings must maintain dimensional integrity across thermal cycling, resist surface degradation, and hold tight tolerances so that adjacent components fit and function correctly over years of service. Tsingbay's shell mold process addresses all three requirements, with multi-material capability spanning ductile iron, heat-resistant alloys, and low-alloy steel.
Requirements exceeded
Aluminium Ingot Mould
QT350-22 Ductile iron
Developed for an Australia customer. Length 1,770 mm, weight 230 kg. Validation was completed within 3 months, with all key requirements exceeded. 300+ pieces delivered and stable in-service operation.
tensile strength
≥ 450 MPa
28% above requirement
elongation
≥ 24%
Customer requirement ≥22%
casting tolerance
≤ 2 mm
Customer requirement ≤3 mm

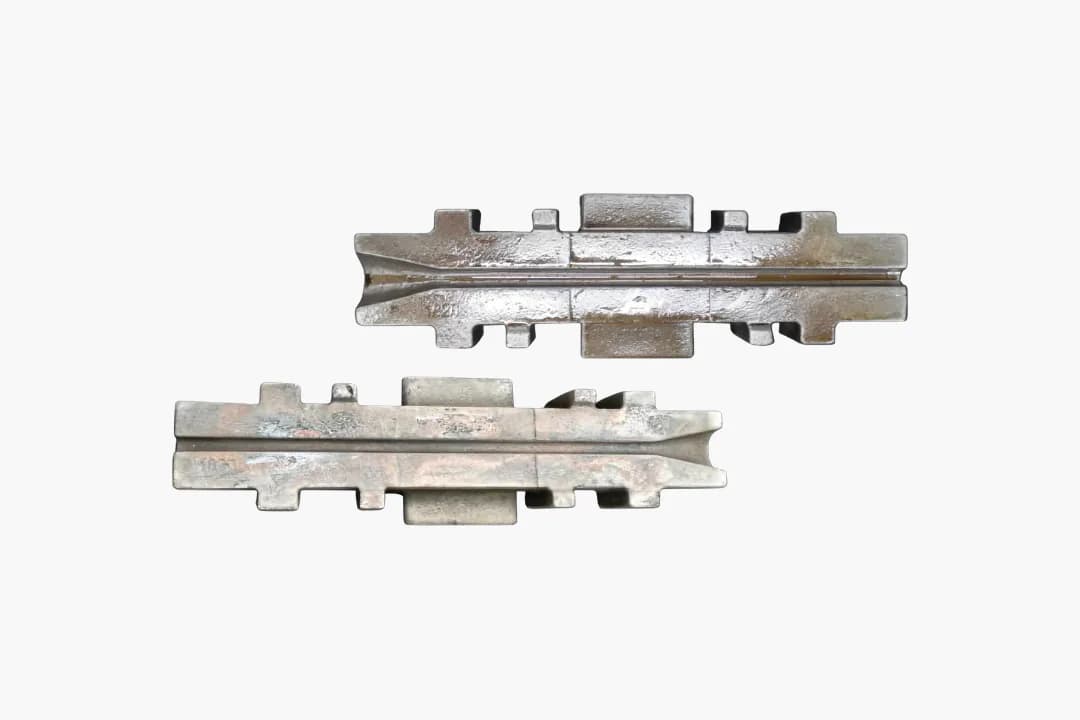

Guiding Channel
ZG2Cr13 / Martensitic stainless steel
HRC 35–40 · Tolerance ≤ 0.5 mm

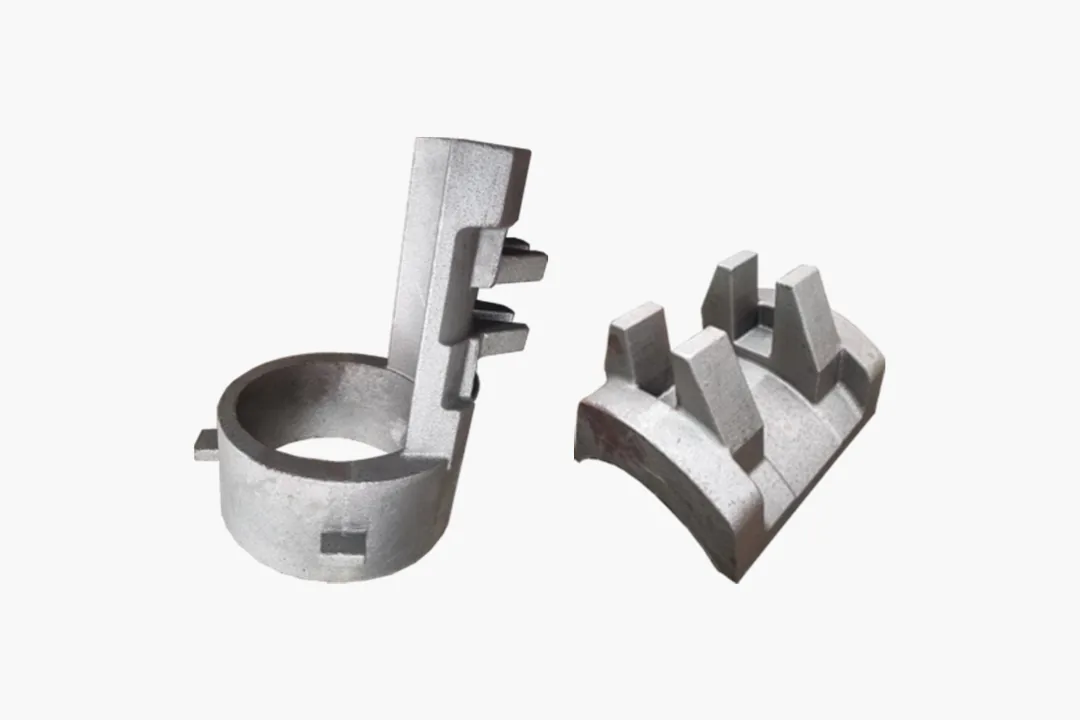

Connecting Plate
ZG35CrMo
Fit-ready assembly

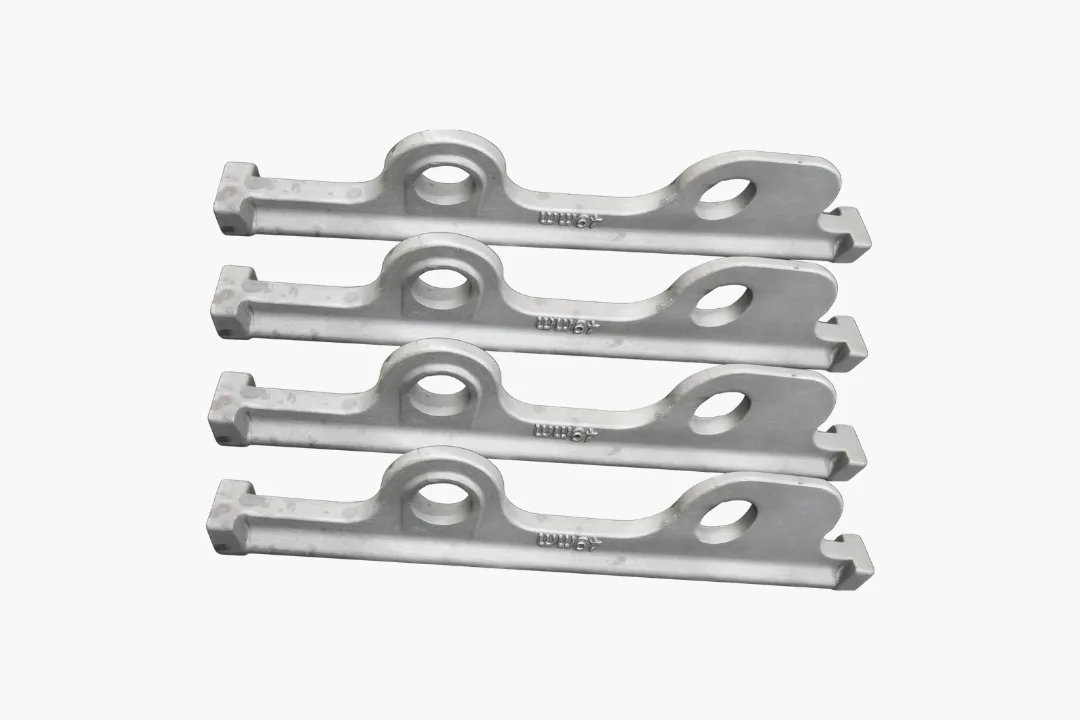

Grate Bar
DIN 1.4776
Heat resistance 1,100°C · Tolerance ≤ 0.5 mm
Heat, impact and fit — all in one? Let’s find a stable casting route.
Share the working temperature, drawing or material requirement. We’ll help review how the part can hold its shape and performance under repeated service.
